INSTALLATION GUIDE

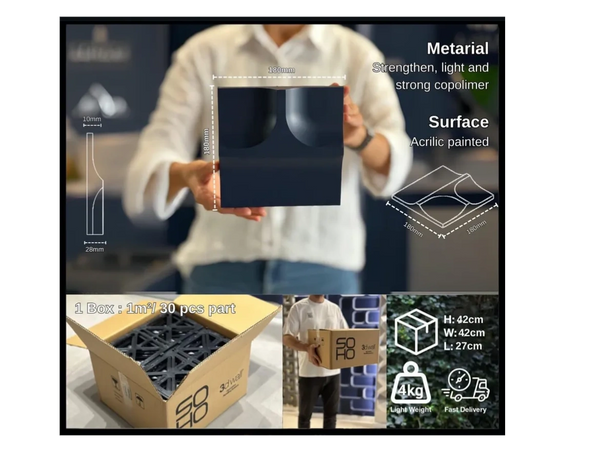

Ready to install straight from the box, each package covers 1 m² (approx. 5 kg) and includes easy clip-on brackets. No sanding, priming, or filling is required.

Easy to handel the lightweight and secure packaging of our 3D wall panels makes transport simple.

 Flexible design with Interlocking brackets allow for multiple angles and creative combinations.  If the wall allows, screws can be added after the silicone adhesive dries for extra strength, ensuring durability for optional reinforcement.

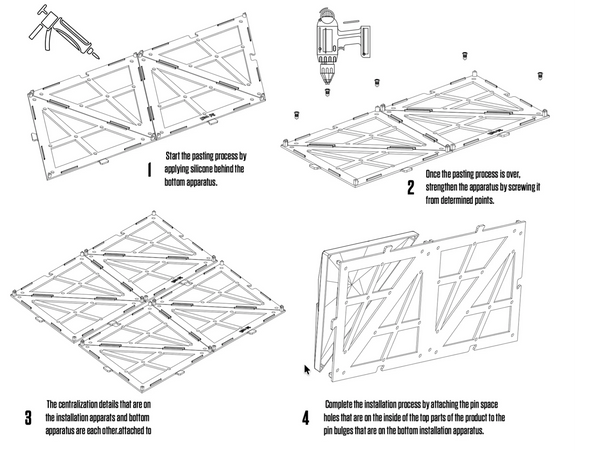

There are modular mounting spacers and panels in each box. The application of the lower mounting apparatus (Spacer) can be started from the lowest or upper corners of the wall. Siliconized mastic can be used to adhere the product. After the sub-assembly application is finished, it should be waited for it to dry.  After the drying time has passed, you can easily complete the assembly by attaching the upper panel of the wall panels to the pins on the lower spacers assuring panels are mounted on to spacers.

Simplicity Of Modern Design

Enjoy The Process
